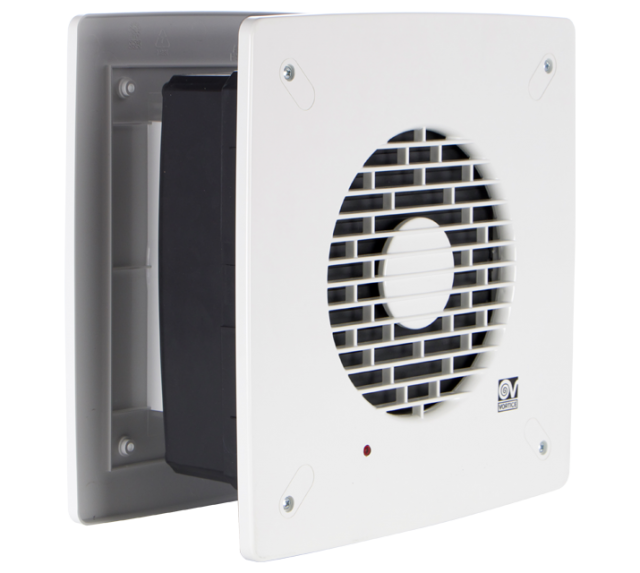

Vortice Vario ARI Series
Flexible solutions to improve air quality in domestic or commercial environments
Quiet, flexible and reversible fans
Model: Vario ARI Series
Features
- Highly efficient impellers: Vortice are the best in its category for performance and low energy consumption
- Low noise levels
- Casing made from shock-resistant UV-stabilised ABS
- IPX4 Rating
- Automatic shutters
- AR models are fitted with a thermo actuator - Automatic open/close shutter operation
- Flush Mounted
- Long life models available
| Model | Code | Type | V | Hz | W | A | Phase | RPM | L/s | m3/hr | dBA@3m |

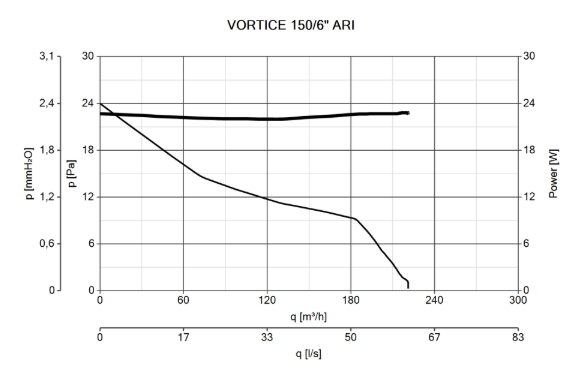

| VARIO 150/6" ARI | ALV12613 | Automatic shutters, Flush Mount | 240 | 50 | 25 | 0.11 | 1 |
1880(E) 1330(S) |
61.1(E) 36.1(S) |
220(E) 130(S) |
38.2 |

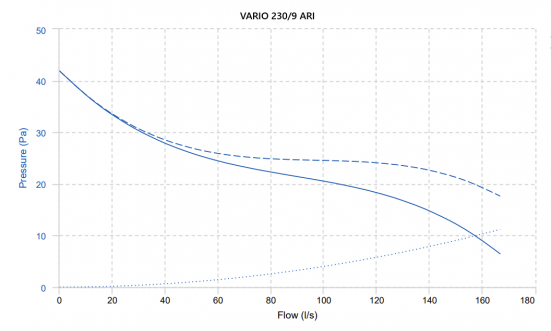

| VARIO 230/9" ARI | ALV12453 | Automatic shutters, Flush Mount | 240 | 50 | 26 | 0.13 | 1 |
1080(E) 810(S) |
125(E) 83.3(S) |
450(E) 300(S) |
35.7 |

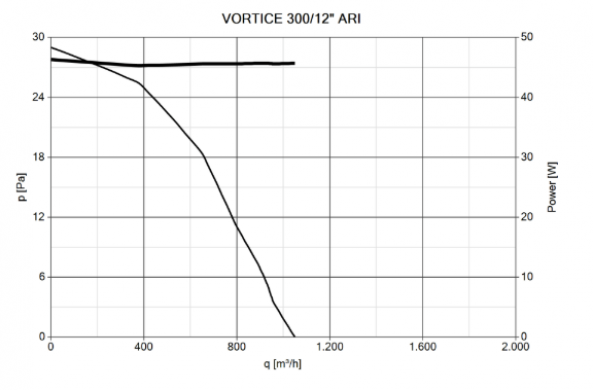

| VARIO 300/12"ARI | ALV12413 | Automatic shutters, Flush Mount | 240 | 50 | 45 | 0.21 | 1 |
1150(E) 850(S) |
333.3(E) 236.1(S) |
1200(E) 850(S) |
40.7 |
E = Exhaust AR = Auto Reversible I = Flush Mounted
S = Supply

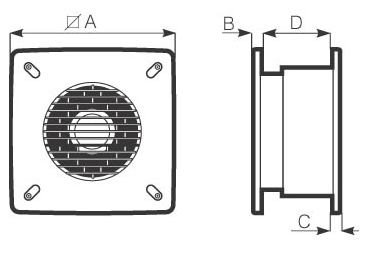

| Model | Code | Ø hole through the wall | A (mm) | B (mm) | C (mm) | D (mm) |
| VARIO 150/6" ARI | ALV12613 |
260/265 |
300 | 9.5 | 10.5 | 135 |
| VARIO 230/9" ARI | ALV12453 | 335/340 | 400 | 10 | 11 | 180 |
| VARIO 300/12"ARI | ALV12413 | 435/440 | 495 | 10.5 | 11.5 | 210 |
