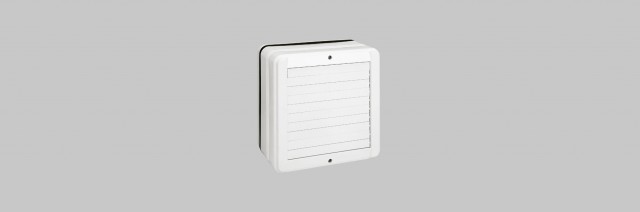

Ventimatic 12
Axial fan glass mounting
Glass or panel mounting up to 10 mm.
- Axial fans to extract air directly outside.
- Glass or panel mounting up to 10 mm.
- Slow and quiet motion of shutter (Ventimatic).
- Rain proof external grille.
- Double insulated product, without ground wire for fast connection.
- Careful selection of materials: grilles in white ABS and body in polystyrene.
- Supplied with anti-vibration gasket.
- IPX4 protected (EN 60529).
- In accordance with Standard EN 60335-2-80.
| Model | Code | Ø Hole (mm) | Voltage (V) | Frequency (Hz) | Flow Rate (m³/h) | Max Press. (mm H₂O) | Max Press. (Pa) | Power (W) | Noisiness dB(A) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| VENTIMATIC 12 | 0011100 | 155–165 | 220–240 | 50 | 100 | 3.0 | 29 | 16 | 34 | 1 |
