ROOF MOUNTED AXIL
For commercial installations ranging from food trucks to shop fitouts. Suitable retrofit option for existing round base installations.
VERTICAL DISCHARGE KITCHEN EXHAUST

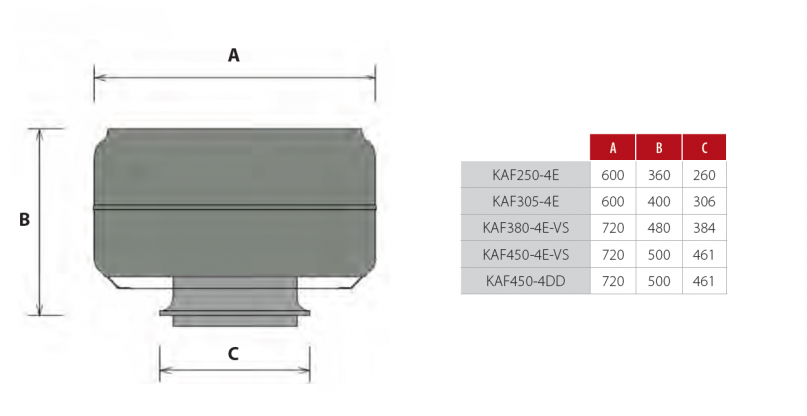

Model: KAF
Features
• Used for commercial kitchen applications and general ventilation.
• Weather proof housing.
• Galvanized steel construction.
• Speed controllable.
• Powder coated finish.
• Detachable windband for easy cleaning.
• Circular connection. Includes flange bracket for easy mounting.
| Model | Code | mm | A | KW | Hz | Phase | V | l/s | m3/h | Pa | RPM | dBA |
| KAF250-4E | ALV620 | 250 | 0.55 | 0.12 | 50 | 1 | 240 | 500 | 1800 | 300 | 1390 | 48 |
| KAF305-4E | ALV621 | 300 | 1.0 | 0.2 | 50 | 1 | 240 | 700 | 2520 | 350 | 1400 | 52 |
| KAF380-4E-VS | ALV623 | 380 | 2.3 | 0.37 | 50 | 1 | 240 | 1800 | 6480 | 150 | 1410 | 54 |
| KAF450-4E-VS | ALV626 | 450 | 4.4 | 0.75 | 50 | 1 | 240 | 3000 | 10800 | 150 | 1380 | 58 |
| KAF450-4DD | ALV627 | 450 | 1.8 | 0.75 | 50 | 3 | 415 | 3000 | 10800 | 150 | 1400 | 58 |
