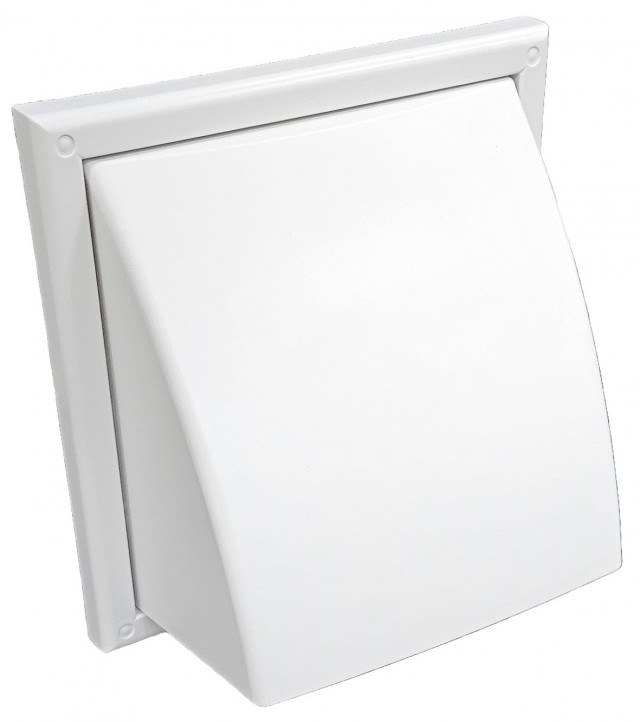

Plastic Hood
Designed for hood exhaust ventilation. Includes backdraft damper.
External hood ventilation
Model: PHG Series
Order Code: See technical data for further details

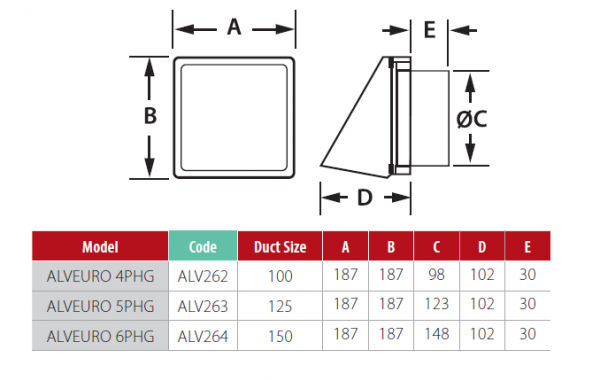

| Model | Code | Duct Size | A | B | C | D | E |
| ALVEURO 4PHG | ALV262 | 100 | 187 | 187 | 98 | 102 | 30 |
| ALVEURO 5PHG | ALV263 | 125 | 187 | 187 | 123 | 102 | 30 |
| ALVEURO 6PHG | ALV264 | 150 | 187 | 187 | 148 | 102 | 30 |
Contact Allvent for further information.
