Allvent Intumescent Ceiling Mounted Fire Dampers - Straight neck adaptor
Fire and incipient rated ceilings.
- Fire resistance in
- accordance with AS1530.4
- 2014. 90 minutes
- fire resistance with 60
- minutes resistance to the
- incipient
- spread of flame.
-
Fire-rated and incipient-rated ceiling system.
-
Complies with AS1530.4:2014 fire resistance requirements.
-
Provides 90 minutes of fire resistance.
-
Offers 60 minutes resistance to the incipient spread of flame.
| Model | Code | Size | Spigot Ø | Optional Ceiling Grille |
| ALVC3- LVH44C-150 |
ALV5206 | 250x250 | 150 | ALVECGR6 |

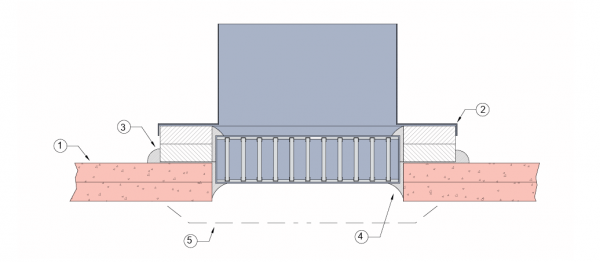

1 Dual layer rated plasterboard ceiling.
2 Lorient fire-rated inline fan connection block.
3 Base plate bedded in Lorient intumescent sealant.
4 Perimeter gap filled to full depth with Lorient intumescent sealant.
5 Aluminium return/supply air cover grilles provided as required.
