Portable and wall-mounted fan heaters

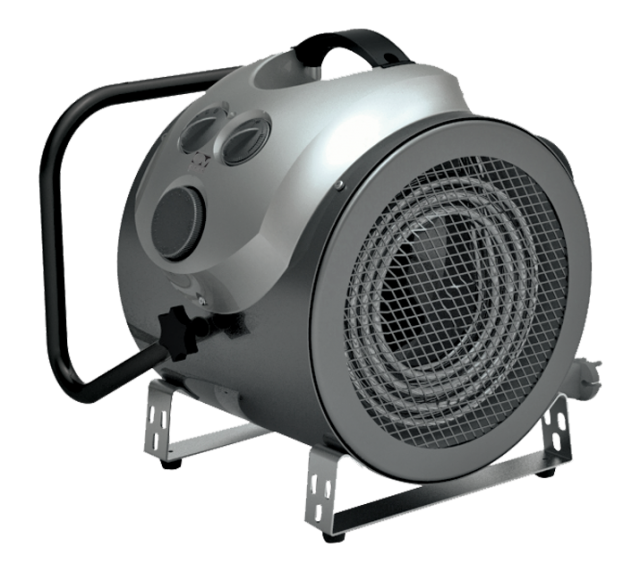

A rugged cylindrical steel heater available in 3 kW or 5 kW versions, featuring a three-phase fan motor, tubular heating element, multi-mode control panel with timer and thermostat, safety cut-out, anti-vibration feet, and an industrial 5-pin power connection
Model: 3000 T, 5000 T
Robust cylindrical steel body with protective air inlet and outlet grilles featuring vertical rib design.
High-reliability fan assembly using a single-speed three-phase motor with a 5-blade aluminium rotor mounted directly on the shaft.
Fitted with tubular heating elements available in 3000 W or 5000 W output options.
Top-mounted control panel made from V0 self-extinguishing ABS, finished in paint, and integrated with a carrying/positioning handle.
Equipped with a 180-minute mechanical timer for delayed shutdown and operational flexibility.
Rotary selector providing four modes: Off, Half Power, Full Power, and Fan-Only operation.
Built-in automatic reset thermal overload safety device mounted to the heating element.
Stable bent and painted steel feet with anti-vibration mounts for low-noise operation.
Supplied with a heavy-duty 1800 mm industrial-grade power cord and 5-pin safety plug.
Includes a bulb-type room thermostat for accurate temperature control and is certified to IMQ safety standards.
| Feature | 3 kW Model | 5 kW Model |
|---|---|---|
| Heating Element | 3000 W tubular element | 5000 W tubular element |
| Motor Type | Single-speed, three-phase | Single-speed, three-phase |
| Rotor | 5-blade aluminium rotor | 5-blade aluminium rotor |
| Body Construction | Cylindrical steel structure | Cylindrical steel structure |
| Grilles | Steel grilles with vertical ribs | Steel grilles with vertical ribs |
| Control Panel | V0 self-extinguishing ABS, painted, with handle | V0 self-extinguishing ABS, painted, with handle |
| Operating Modes | Off / Half Power / Full Power / Fan Only | Off / Half Power / Full Power / Fan Only |
| Timer | 180-minute mechanical timer | 180-minute mechanical timer |
| Safety Device | Auto-reset thermal overload cutout | Auto-reset thermal overload cutout |
| Feet | Painted steel feet with anti-vibration mounts | Painted steel feet with anti-vibration mounts |
| Power Cord | 1800 mm, industrial-grade, 5-pin safety plug | 1800 mm, industrial-grade, 5-pin safety plug |
| Thermostat | Bulb-type room thermostat | Bulb-type room thermostat |
| Certification | IMQ certified | IMQ certified |
| Specification | 3 kW Model | 5 kW Model |
|---|---|---|
| Frequency (Hz) | 50 | 50 |
| Insulation Class | I° | I° |
| IP Rating | IPX4 | IPX4 |
| Max Absorbed Current (A) | 4.3 | 7.2 |
| Max Absorbed Power (W) | 3000 | 5000 |
| Voltage (V) | 400 | 400 |
| Weight (kg) | 5.4 | 5.4 |

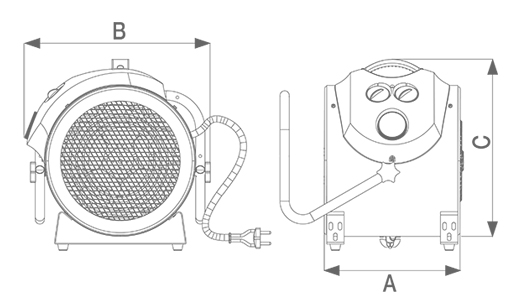

| Dimension | 3 kW Model | 5 kW Model |
|---|---|---|
| Size A (mm) | 250 | 250 |
| Size B (mm) | 330 | 330 |
| Size C (mm) | 340 | 340 |
