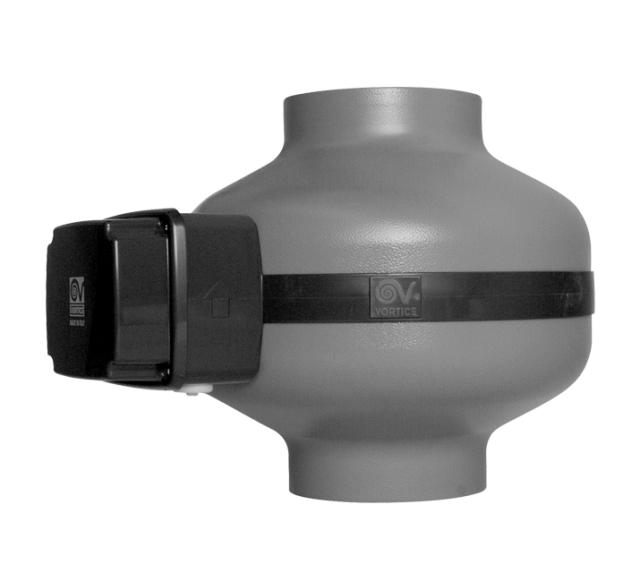

Vortice CA ES SERIES

Energy saving in-line centrifugal fans

Pickled and phosphated steel housing with powder-coated finish, 100 mm diameter, high-efficiency ES brushless motor with backward impeller, remote-sensor capable, supplied with zinc-coated wall brackets, and a dip-switch for selecting either 2-speed operation (via optional switch) or 1-speed operation (via 0–10 V potentiometer).

Enquire about this product Add to Enquiry List Remove from Enquiry List

Model: CA 100 ES, CA 125 ES, CA 150 ES, CA 200 ES, CA 250 ES, CA 315 ES

  • Pickled and phosphated steel housing with a polyester powder-coated finish for resistance to harsh environments.

  • Nominal diameters: 100, 125, 150, 200, 250, 315 mm.

  • High-efficiency ES (brushless) motor with a backward-curved impeller.

  • Supports connection to remote sensors.

  • Supplied with zinc-coated steel wall-mounting brackets.

  • Dip-switch allows selection of:

    • Two-speed operation, set during installation and adjustable via an optional two-speed switch.

    • Single-speed operation, adjustable using an optional 0–10 V potentiometer.

Specification CA 100 ES CA 125 ES CA 150 ES CA 200 ES CA 250 ES CA 315 ES
Frequency (Hz) 50 50 50 50 50 50
Insulation Class II° II° II° II° II° II°
IP Rating IP44 IP44 IP44 IP44 IP44 IP44
Max Ambient Temp (°C) 50 50 50 50 50 50
Nominal Diameter (mm) 100 125 150 200 250 315
Voltage (V) 220–240 220–240 220–240 220–240 220–240 220–240
Nominal Power – Max (W) 80 80 120 120 140 160
Nominal Power – Min (W) 3 3 3 3 4.5 4.5
Nominal Current – Max (A) 0.7 0.7 1.0 1.0 1.1 1.3
Nominal Current – Min (A) 0.05 0.05 0.05 0.05 0.05 0.05
Weight (kg) 3.5 3.5 6.1 6.0 7.6 11
Airflow – 1st Speed (l/s) 9 14 28 35 36 47
Airflow – 1st Speed (m³/h) 33 52 100 125 130 170
Max Airflow (l/s) 107 144 222 317 361 444
Max Airflow (m³/h) 385 520 800 1140 1300 1600
Max Pressure (mmH₂O) 52 47 50 50 60 62
Max Pressure (Pa) 510 461 490 490 588 608
Max RPM 2720 2650 2250 2280 2500 2380
Min RPM 300 300 300 300 300 300
1st Speed Pressure (mmH₂O) 0.5 0.5 0.7 0.7 0.7 0.8
1st Speed Pressure (Pa) 5 5 7 7 7 8
Sound Pressure @3m (dB(A)) 46.9 49.7 48.1 47.6 40.1 39.7

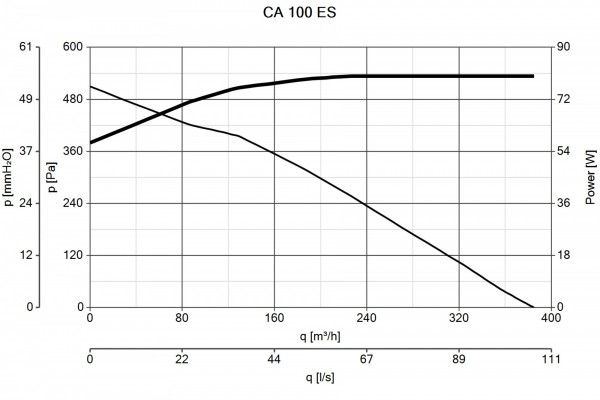

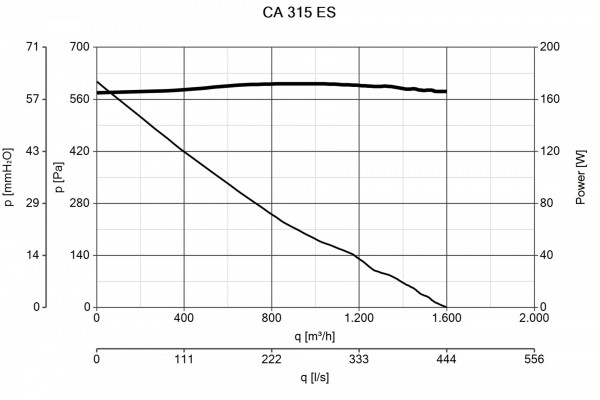

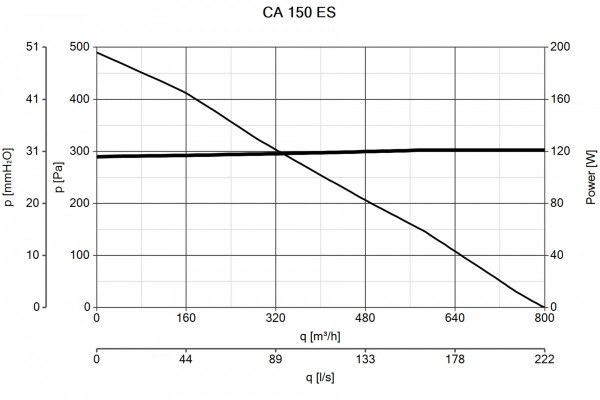

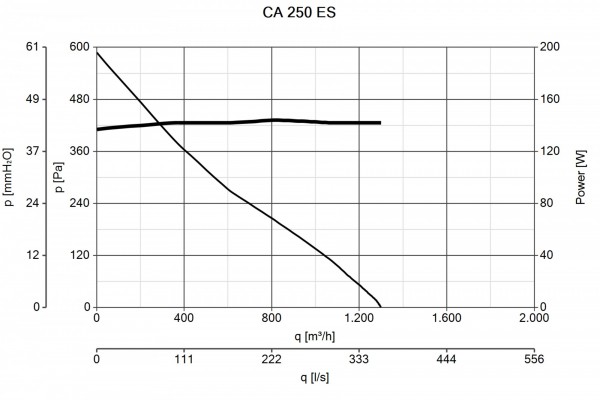

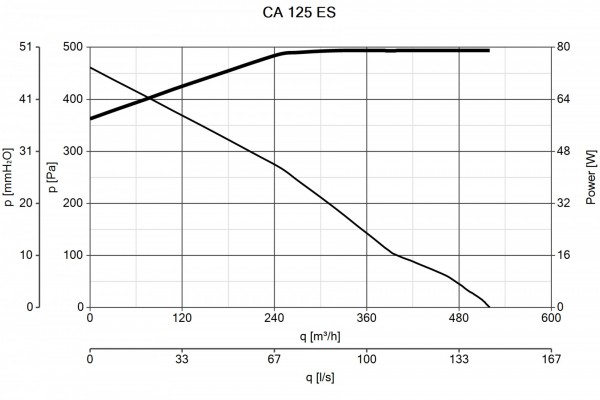

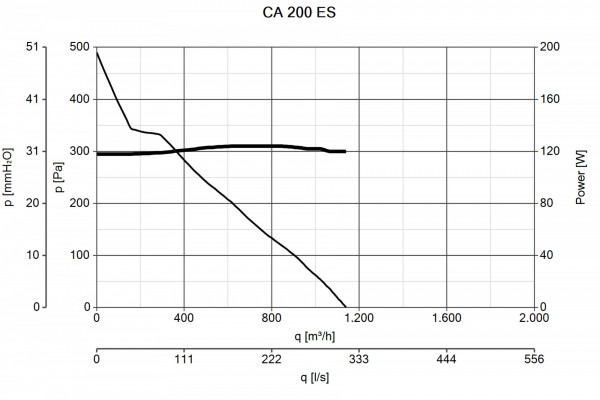

70 EN 16200 Documenti Curve Curva JPG 16200 Curve per Catalogo 14970870 EN 16201 Documenti Curve Curva JPG 16201 Curve per Catalogo 12857570 EN 16203 Documenti Curve Curva JPG 16203 Curve per Catalogo 12863670 EN 16205 Documenti Curve Curva JPG 16205 Curve per Catalogo 12862070 EN 16206 Documenti Curve Curva JPG 16206 Curve per Catalogo 12861470 EN 16207 Documenti Curve Curva JPG 16207 Curve per Catalogo 128608



70 EN 16200 Foto Pubblicita quota 134234

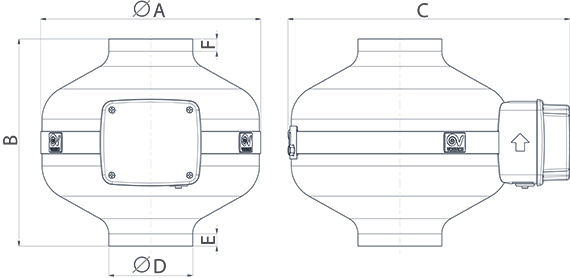

Dimension CA 100 ES CA 125 ES CA 150 ES CA 200 ES CA 250 ES CA 315 ES
Size A (mm) Ø 255 Ø 255 Ø 347 Ø 347 Ø 347 Ø 406
Size B (mm) 239 239 275 275 275 306
Size C (mm) 330 330 422 422 420 485
Size D (mm) Ø 97 Ø 122 Ø 147 Ø 197 Ø 247 Ø 312
Size E (mm) 15 23 17 20 39 35
Size F (mm) 15 23 17 17 35 30
