70 EN 12828 Foto WEB pot 01 131087

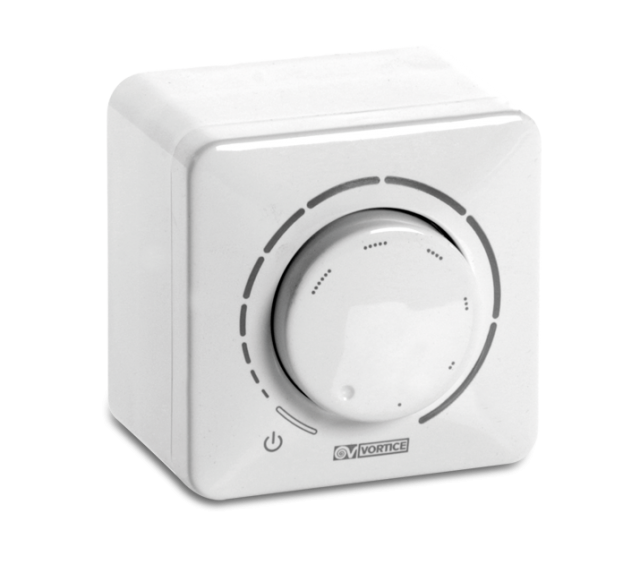

Vortice POT

Potentiometer for standard DIN box installation with 10 kΩ resistance, rated 4 A/250 Vac or 10 A/12 Vdc, offering IP44 recessed and IP54 wall-mounted protection.

  • White potentiometer designed for standard DIN box installation with a 10 kΩ resistance and switch ratings of 4 A at 250 Vac or 10 A at 12 Vdc.
  • Provides IP44 protection when recessed and IP54 when wall-mounted.
Enquire about this product Add to Enquiry List Remove from Enquiry List



  • Suitable for installation in a standard DIN box

  • White finish

  • 10 kΩ resistance

  • Switch rating: 4 A at 250 Vac or 10 A at 12 Vdc

  • Protection rating: IP44 (recessed) / IP54 (surface-mounted)



  • Voltage (V) 12
  • Weight (Kg) 0,15

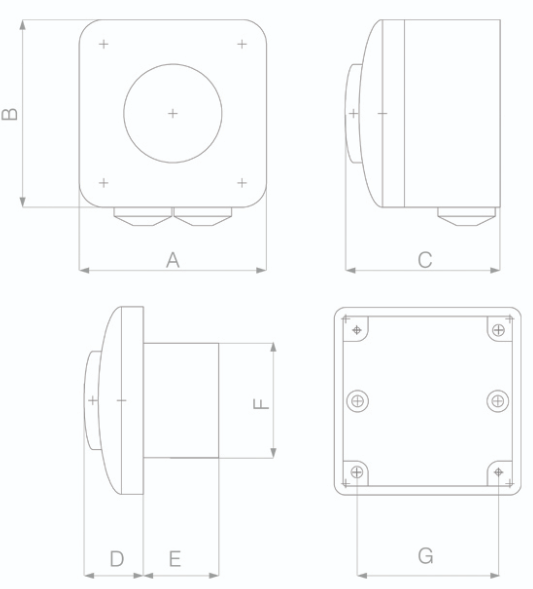

  • Size A (mm) 82
  • Size B (mm) 82
  • Size C (mm) 68
  • Size D (mm) 26
  • Size E (mm) 33
  • Size F (mm) 50X50
  • Size G (mm) 62
    Screenshot 2025 11 13 144019

RCM v56

Enquire About This Product
