AE range 18

Vortice A-E Range

A range of compact, plate-mounted, axial-flow fans suitable for wall or panel mounting. Suitable for commercial and industrial applications.

Compact, Plate-mounted, Axial-flow fans

Enquire about this product Add to Enquiry List Remove from Enquiry List

Model: A-E Range

Order Code: See technical data for further details

Vortice Features

  • Low noise levels
  • Panels made of Vortice pressed steel,
    • phosphate and epoxy powder coated with a hammered effect finish,
    • painted in polyester black paint,
    • 5 pressed steel blades, electrolytically galvanised and polyester powder-coated, colour black,
    • guarantee long-term resistance to atmospheric agents.
  • Ventilation port made:
    • in one piece with the panel gauged to optimise airflow.
    • aerodynamically contoured and elongated to optimise performance
    • easy connection to the relative duct.
  • Vortice Protective grille
    • in accordance with UNI ISO 13857 standard)
    • acts as anti-bird guard,
    • made of electrically welded steel
    • epoxy paint finish, colour black.
    • easy removal simplifies maintenance and cleaning of the fan.
  • Vortice 1 speed single-phase AC motor
    • External rotor type designed to minimise axial dimensions,
    • haft turning in ball bearings,
    • insulation class F, thermal overload protection.
  • Maximum air flow 1365 m3/h
  • Three phase models available
  • Dynamically balanced impeller (UNI ISO 1940, Point 1 – Class 6.3)
Model Code W A Poles RPM m3/hr L/sec Pa dBA Max 0C
A-E252M ALV42207 95 0.41 2 2500 1365 379 177 53 50
A-E254M ALV42208 38 0.17 4 1400 764 212 61 38.5 50
A-E304M ALV42216 81 0.35 4 1400 1563 434 130 43 50
A-E354M ALV42258 182 0.82 4 1400 2960 822 100 49.5 50
A-E404M ALV42260 261 1.20 4 1400 4310 1197 152 55.6 50
A-E454M ALV42307 302 1.35 4 1400 5250 1458 127 54.8 40
A-E504M ALV42316 482 2.12 4 1400 6639 1844 186 59 50
A-E506M ALV42337 285 1.32 6 1000 4805 1335 152 57.2 50
A-E566M ALV42356 345 1.51 6 1000 6715 1865 134 57.2 50

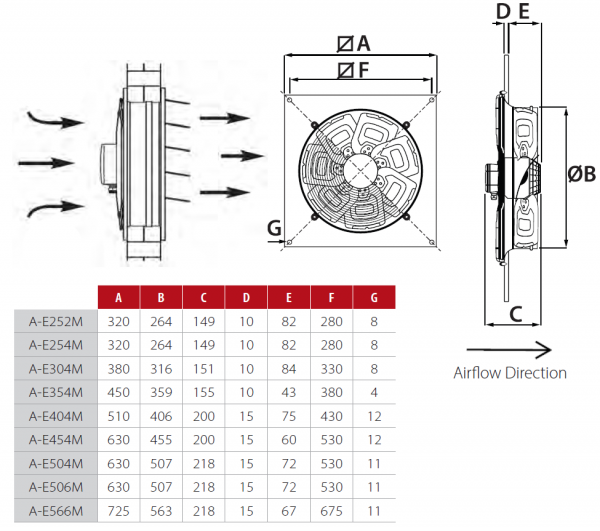

A E Series
