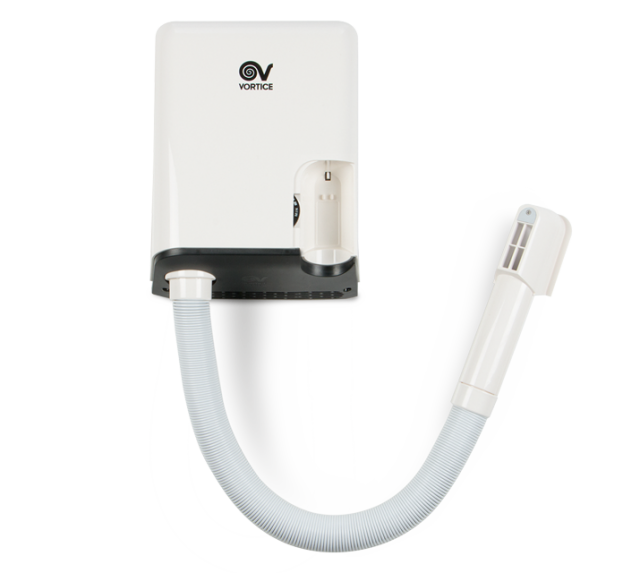

Vortice VORTDRY
High-quality DC motor with compact size
Wave heating element with automatic reset thermal protection.
| Parameter | Value |
|---|---|
| Frequency (Hz) | 50–60 |
| Insulation Class | II° |
| IP Rating | IP24 |
| Max Absorbed Current (A) | 3 |
| Max Absorbed Power (W) | 700 |
| Motor Power (W) | 33 |
| Voltage (V) | 220–240 |
| Weight (kg) | 1.8 |
| Max Delivery of Side Outlet at Max Speed (m³/h) | 102 |
| Max Delivery of Side Outlet at Min Speed (m³/h) | 47 |
| Max Flow Speed (m/s) | 18.4 |
| Min Flow Speed (m/s) | 8.0 |
| Sound Pressure at 1 m – Max Speed Lp [dB(A)] | 70 |
| Sound Pressure at 1 m – Min Speed Lp [dB(A)] | 60 |
| Dimension | Size (mm) |
|---|---|
| A | 220 |
| B | 290 |
| C | 112 |
| D | 580 |
