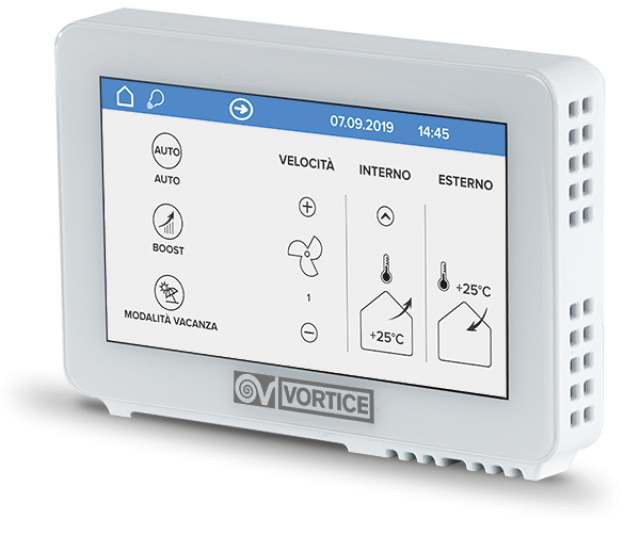

Vortice Touch LCD W
Wall controller
Remote control panel with color graphic LCD display that can be combined with VORTICE centralized HRUs
Remote control panel with colour graphic LCD display, compatible with VORTICE centralized residential heat recovery units.
TECHNICAL FEATURES
-
4.5” graphic touch display
-
Wall-mounted fixing plate (no standard electrical boxes required)
-
Connection to the heat recovery unit via safety low-voltage interface
(maximum cable length: 70 m) -
User-adjustable screen brightness with 3 intensity levels
-
Adjustable display time-out: 30 / 60 / 120 seconds
-
Integrated night light on the lower section of the control panel, user-adjustable with 4 light intensity levels
-
Management software available in 6 languages: Italian, English, French, German, Spanish, and Chinese
-
TUV SUD–verified safety
| Parameter | Value |
|---|---|
| Max absorbed current (A) | 0.1 |
| Max absorbed power (W) | 1.2 |
| Voltage (V) | 12 |
| Weight (kg) | 0.15 |

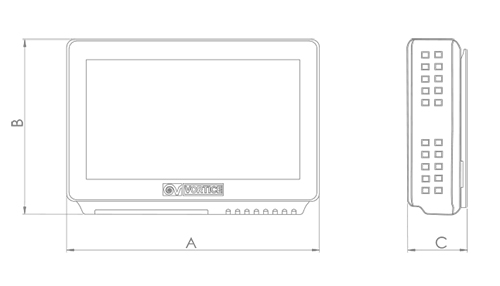

| Size | Dimension (mm) |
|---|---|
| A | 123 |
| B | 85 |
| C | 26 |
