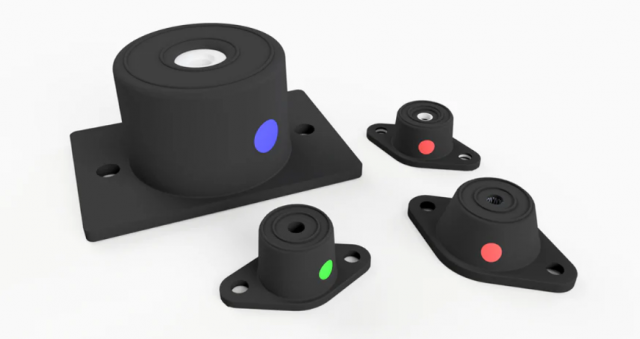

Allvent Rubber Mounts
Isolation of noise and vibration from equipments.
Used where an affordable mount is required to effectively isolate equipment from noise and vibration.
Typical applications include:
-
Pumps and fans
-
Generator sets
-
General industrial equipment
-
Mobile equipment
-
Electrical transformers
-
Packaged air conditioning equipment
Features
-
5 to 12 mm static deflection
-
Threaded top insert
-
Non-skid ribbed base
-
Colour-coded load range
-
| Model | Code | Weight kg |
| RIS Blue | ALV2400 | 17 |
| RIS White | ALV2401 | 25 |
| RIS Red | ALV2402 | 40 |
| RIS Green | ALV2403 | 55 |
| RIS Yellow | ALV2404 | 80 |
Options
-
Moulded in alternative elastomers (special order)
-
Internal plates available in stainless steel
-
Can be supplied with leveling bolt for NR3, NRD3 (see NRL picture)
-
Can be supplied with oil caps
-
NL Mount option (through hole in top plate)
