RCF Series
for residential and light commercial applications

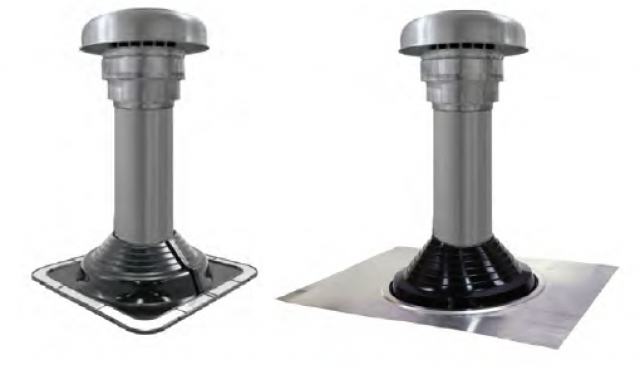

Low-profile roof exhaust or supply fan
Model: RCF
Order Code: See technical data for further details
Features
• 150mm diameter x 600mm long metal tube
• 200mm diameter x 600mm long metal tube
• Low profile roof fan available as supply OR exhaust
• Fan incorporated in the cowl
• Aluminium cowl construction
• Pleasing aesthetics
• High quality for longevity of operation
• Low noise within premises
• Comes standard with metal roof Dektite
• Optional aluminium flashing available for tile roof application
• Fitted flex and plug
• Bushfire complaint models available
Accessories
• Internal grille
• Flexible duct
• Speed controllers
| Model | Code | FLOW | Suits | Size | l/s | m3/hr | v | Hz | W | Phase | RPM | Dia | dBA |
| ALVRCF-AE150MKIT | ALV701 | Exhaust | Metal roof | 150 | 70 | 328 | 240 | 50 | 35 | 1 | 2150 | 150 | 41 |
| ALVRCF-AS150MKIT | ALV703 | Supply | Metal roof | 150 | 70 | 328 | 240 | 50 | 35 | 1 | 2150 | 150 | 41 |
| ALVRCF-AE150TKIT | ALV702 | Exhaust | Tile roof | 150 | 70 | 328 | 240 | 50 | 35 | 1 | 2150 | 150 | 41 |
| ALVRCF-AS150TKIT | ALV704 | Supply | Tile roof | 150 | 70 | 328 | 240 | 50 | 35 | 1 | 2150 | 150 | 41 |
| ALVRCF-AE200MKIT | ALV720 | Exhaust | Metal roof | 200 | 142 | 511 | 240 | 50 | 37 | 1 | 1950 | 200 | 45 |
| ALVRCF-AS200MKIT | ALV721 | Supply | Metal roof | 200 | 142 | 511 | 240 | 50 | 37 | 1 | 1950 | 200 | 45 |
| ALVRCF-AE200TKIT | ALV722 | Exhaust | Tile roof | 200 | 142 | 511 | 240 | 50 | 37 | 1 | 1950 | 200 | 45 |
| ALVRCF-AS200TKIT | ALV723 | Supply | Tile roof | 200 | 142 | 511 | 240 | 50 | 37 | 1 | 1950 | 200 | 45 |
