DRC

DRC Series

This series is available in single-phase and 3-phase power. Single-phase power uses external rotor motors with speed control. 3-phase power requires a step speed controller with external rotor motors.

Centrifugal Roof Mounted Exhaust

Enquire about this product Add to Enquiry List Remove from Enquiry List

Model: DRC Series

Order Code: See technical data for further details

Features

This series is available in single-phase and 3-phase power.

  • Single-phase power uses external rotor motors with speed control.
  • 3-phase power requires a step speed controller with external rotor motors.
  • EC models available.
  • Bushfire Compliant options available (metal construction)
Model  Code Power kW FLA   Phase Speed RPM dBA
@ 3m
DRC190-2E ALV842 0.052 0.23 1 2560 43
DRC220-2E ALV844 0.085 0.38 1 2600 51
DRC220-4E ALV846 0.05 0.25 1 1380 36
DRC280-4E ALV864 0.078 0.35 1 1420 43
DRC280-6E ALV865 0.038 0.35 1 960 35
DRC315-4E ALV867 0.115 0.5 1 1430 45
DRC315-6E ALV866 0.06 0.5 1 960 38
DRC355-4E ALV868 0.125 0.35 1 1420 45
DRC400-4E ALV870 0.48 2.4 1 1379 49

DRC Data

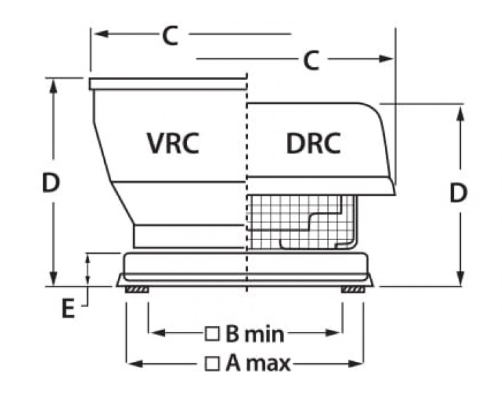

Screenshot 2026 03 30 074149

VRC Size A B C D E Weight (kg)
190/220 265 215 400 250 70 7 / 8
280/315 395 345 500 300 50 10 / 12
355 500 400 630 396 70 12
400 500 400 630 410 70 15
DRC Size A B C D E Weight (kg)
190 380 325 400 260 60 4
220 295 245 350 120 50 4
280 395 345 507 215 50 5
315 395 345 505 239 50 6
355 500 400 730 410 70 12
400 500 400 730 427 70 16
