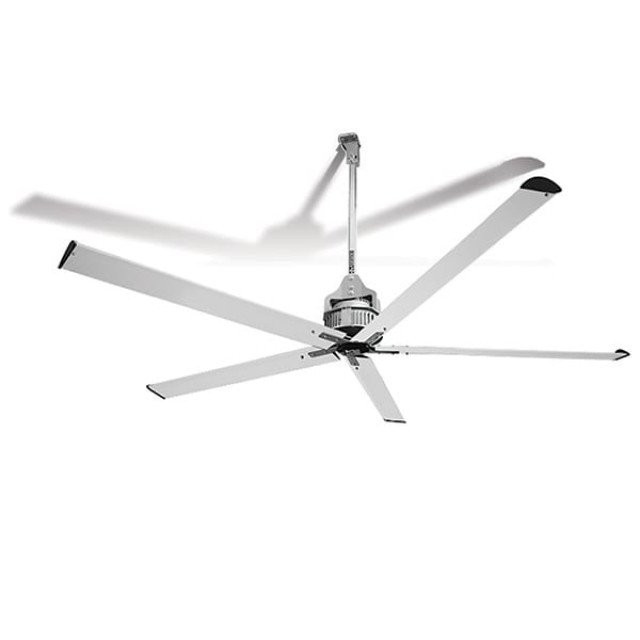

Vortice Vortice Nordik HVLS HyperBlade

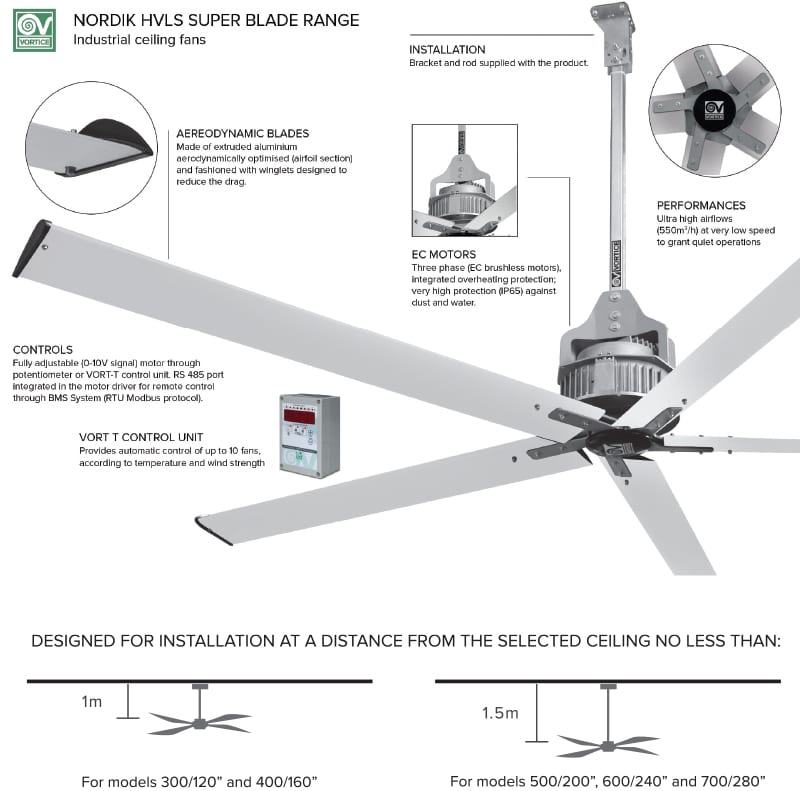

Reversible Industrial Ceiling Fans. Equipped with EC motors that guarantee elevated performance, low consumption and reduced noise emissions, the HVLS HYPERBLADE is ideal for cooling and balancing temperatures in large environments.

  • High Volume, quiet, energy-efficient ceiling fans for large, open buildings
  • Reversible
  • Available in five blade diameters to suit your application
Enquire about this product Add to Enquiry List Remove from Enquiry List

Model: Vortice Nordik HVLS HyperBlade

Order Code: See technical data for further details

  • The width of the ventilated area corresponds to approximately 3 times the nominal diameter of the fan.
  • This industrial fan offers a range of operating temperatures (-10°/+50° C) allowing proper operation in many alternative applications.

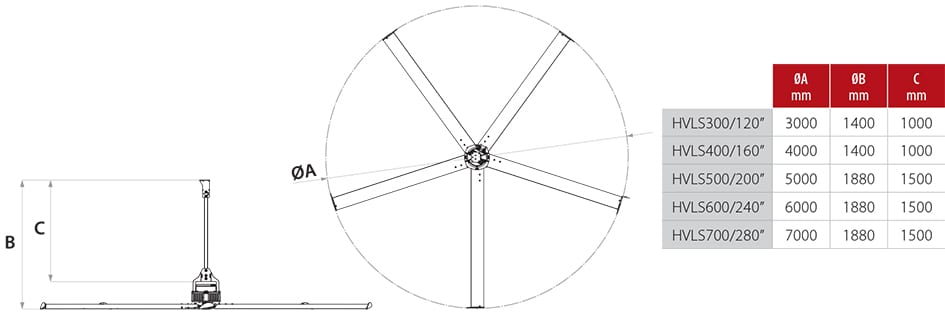

The Vortice Nordik HVLS HyperBlade comes in 5 blade diameters: 3000, 4000, 5000, 6000 and 7000mm



Model Code Ømm V W Hz A m3/h Kg
HVLS Hyper Blade
300/120” (M/T)

ALV61164(M)

ALV61121(T)

 3000

240

415

410

500

 50

1.7-5

0.9-1.8

61400

66200

76

76
HVLS Hyper Blade
400/160” (M/T)

ALV61165(M)

ALV61122(T)

 4000

240

415

290

300

 50

1.3-3.5

0.7-1.1

110300

110300

86

86
HVLS Hyper Blade
500/200” T		 ALV61166 5000 415 730 50 1.2-1.9 205000 126
HVLS Hyper Blade
600/240” T		 ALV61167 6000 415 850 50 1.4-2.8 253800 136
HVLS Hyper Blade
700/280” T		 ALV61169 7000 415 790 50 1.3-2.5 330800 156

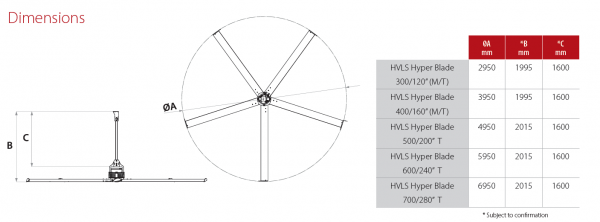

HYPERBLADE DIM
