Vortice Vortice Thermologika Design

For instant heat when needed, or spaces with direct contact with the outside

Infrared Wall Heater

Model: Vortice Thermologika Design

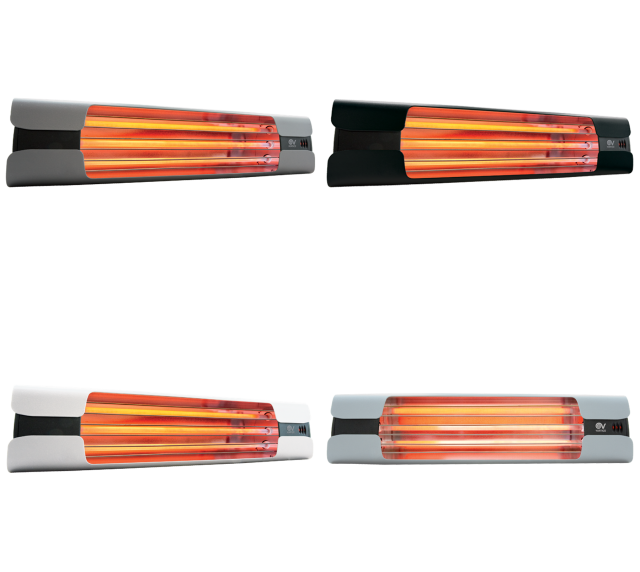

Order Code: ALV70003 (Light Grey), ALV70004 (Grey), ALV70005 (Dark Grey), ALV70006 (Blue), ALV70007 (White)

Wall heater suitable for domestic and commercial applications
Die-cast aluminium end sections with painted finish
Casing sections: pressed steel with painted finish
Grille fashioned with stainless steel rods
3 x infrared bars, each rated 600 W. The single bars can be controlled by remote switches
Vortice Thermologoka Design has pull cord switches for on/off control and heat output settings
Wall-mounted installation using the bracket provided
Facility for connecting two bars in series or parallel

Model Name	Code	Colour	Frequency (Hz)	Insulation Class	IP Rating	Max Current (A)	Max Power (W)	Voltage (V)	Weight (kg)
THERMOLOGIKA DESIGN	ALV70003	Light Grey	50–60	I°	IPX4	7.8	1800	230	2.4
THERMOLOGIKA DESIGN GRIGIO	ALV70004	Grey	50–60	I°	IPX4	7.8	1800	230	2.4
THERMOLOGIKA DESIGN GRIGIO ANTRACITE	ALV70005	Dark Grey	50–60	I°	IPX4	7.8	1800	230	2.4
THERMOLOGIKA DESIGN BLU	ALV70006	Blue	50–60	I°	IPX4	7.8	1800	230	2.4
THERMOLOGIKA DESIGN BIANCA	ALV70007	White	50–60	I°	IPX4	7.8	1800	230	2.4
