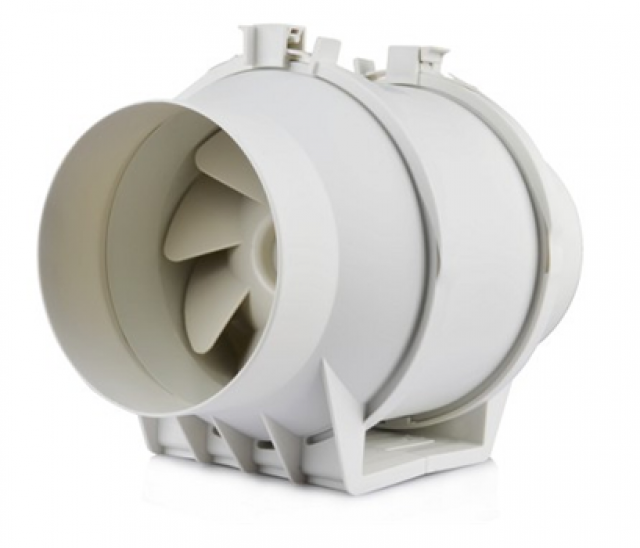

Allvent Mixed Flow Inline Fans

High performance 2-speed mixed flow inline fan designed for quiet and efficient residential and commercial ventilation applications.

Special design of joint for easy installation and maintenance, Optional timer delay, humidity sensor, temperature sensor, or other functions and Perfect for homes, apartments, offices, public places, hotels, gym and etc.

Enquire about this product Add to Enquiry List Remove from Enquiry List

Model: MFI In-Line Mixed Flow

• High performance mixed flow inline fan

• Quiet and energy efficient operation

• Double insulated eco-friendly fan body

• Aerodynamically designed blades for optimal airflow and pressure

• Easy installation and maintenance design

• NMB ball bearing motor with 50,000+ hour lifespan

• IP44 protection rating

• Optional timer, humidity sensor, and temperature sensor functions

• Operating temperature range: -20°C to 60°C

• Suitable for homes, apartments, offices, hotels, gyms, and public areas

Mixed Flow Inline Fan

The MFI Mixed Flow Inline Fan range is designed for high performance residential and commercial ventilation applications requiring strong airflow, quiet operation, and reliable performance.

Featuring an aerodynamically designed mixed flow impeller and energy efficient motor, the MFI series delivers high airflow and pressure performance suitable for ducted ventilation systems.

The compact inline design allows easy installation in ceiling spaces and duct systems for exhaust, supply, and air transfer applications.

Suitable for:

Bathrooms
Toilets
Apartments
Residential ventilation
Offices
Commercial spaces
Heat transfer systems
General exhaust ventilation

Models	Code	V/HZ	Speed	Motor (KW)	Amps	RPM	Max Airflow		Max Pressure (Pa) Pa	dB(A) @3m	KG
							m3/h	l/s
MFI150	ALV01767	240/50	Low	0.044	0.19	1850	410	113	240	29	2.6
			High	0.054	0.22	2550	530	147	300	33	2.6
MFI200	ALV01769	240/50	Low	0.123	0.52	1950	690	191	274	36	4.9
			High	0.128	0.53	2450	840	233	352	43	4.9
