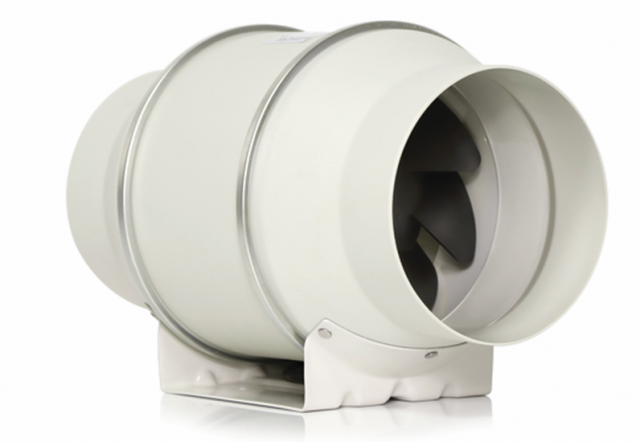

Allvent EC Mixed Flow Inline Fan
Energy efficient EC mixed flow inline fan with built-in speed controller designed for quiet and high performance ventilation applications.
EC In-Line Mixed Flow Fan With BUILT- IN Speed Controller.
Model: ALVMFI-EC
• High performance EC mixed flow inline fan
• Built-in speed controller
• Energy efficient EC motor technology
• Quiet and reliable operation
• Easy installation and maintenance
• Eco-friendly double insulated fan body
• NMB ball bearing motor with 50,000+ hour lifespan
• IP44 protection rating
• Suitable for residential and commercial ventilation
• Ideal for ducted airflow and exhaust applications
MFI EC Mixed Flow Inline Fan
The MFI EC Mixed Flow Inline Fan range is designed for high performance residential and commercial ventilation applications requiring strong airflow, energy efficiency, and quiet operation.
Featuring advanced EC motor technology with built-in speed control, the MFI EC series provides efficient airflow performance while reducing energy consumption and operating noise.
The compact inline design allows easy installation in ducted ventilation systems for exhaust, supply, fresh air, and air transfer applications.
Suitable for:
-
Residential ventilation
-
Commercial ventilation
-
Apartments
-
Bathrooms and toilets
-
Offices
-
Heat transfer systems
-
Inline exhaust systems
-
General ducted airflow applications
Features
-
Built-in speed controller
-
High airflow performance
-
Energy efficient EC motor
-
Quiet operation
-
Easy maintenance
-
IP44 protection class
-
Long life NMB ball bearing motor
| Models | Code | V/HZ | Motor (KW) | Amps | RPM | KG |

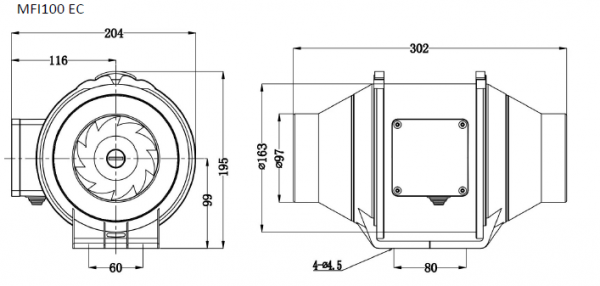

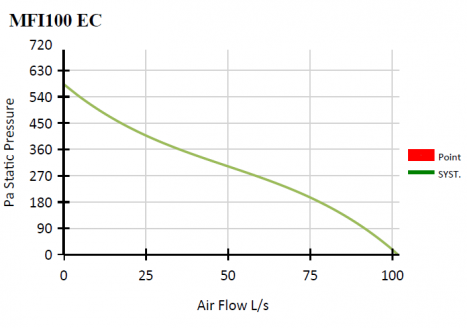

| MFI100 EC | ALV01761 | 240/50 | 0.07 | 0.47 | 3800 | 1.95 |

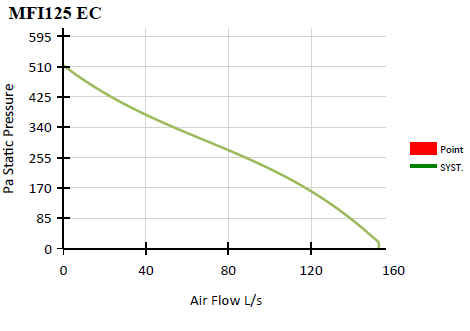

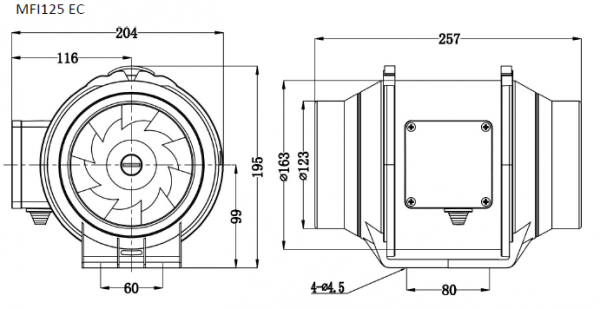

| MFI125 EC | ALV01762 | 240/50 | 0.07 | 0.47 | 3800 | 1.85 |

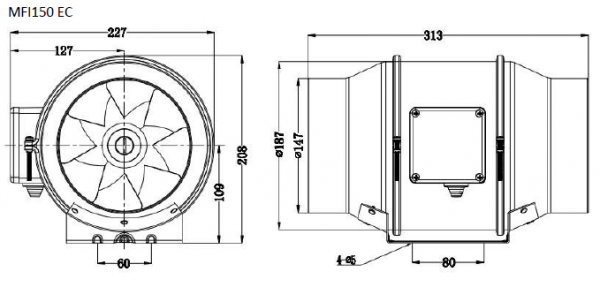

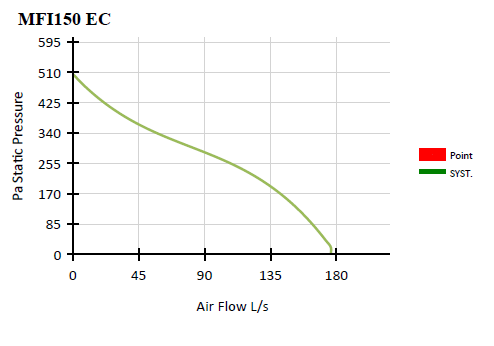

| MFI150 EC | ALV01763 | 240/50 | 0.07 | 0.47 | 3000 | 2.35 |

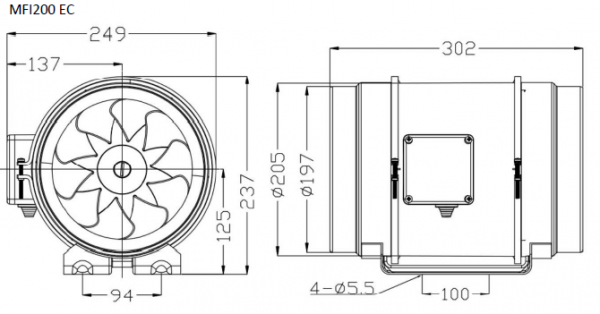

| MFI200 EC | ALV01764 | 240/50 | 0.18 | 2.3 | 3000 | 3.75 |

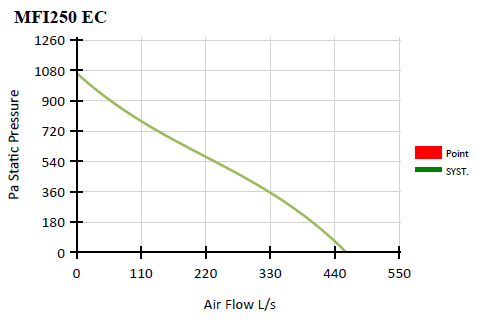

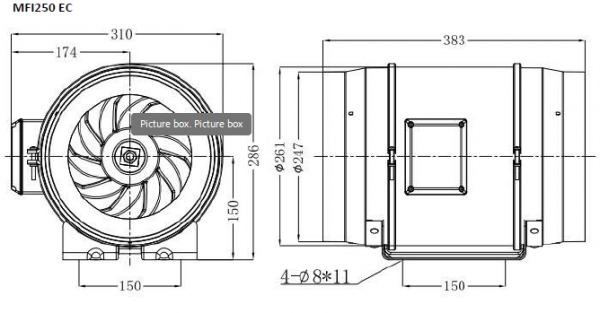

| MFI250 EC | ALV01765 | 240/50 | 0.255 | 1.5 | 3450 | 7.65 |

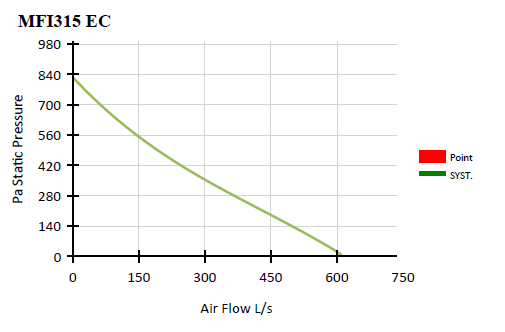

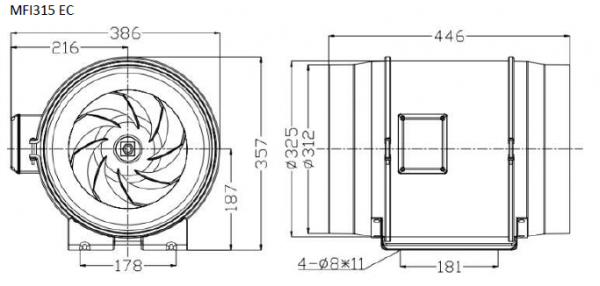

| MFI315 EC | ALV01766 | 240/50 | 0.25 | 1.4 | 2350 | 10.65 |
