DF150Kit 18

Vortice Lineo150 Kit

Complete Ventilation kit for the home in one box: MFI150 in-line fan, duct & fixed grille. 150mm in diameter.

Enquire about this product Add to Enquiry List Remove from Enquiry List

1 × LINEO150 inline fan
1 × 150 mm diameter duct, 6 m length
1 × 150 mm fixed grille
1 × 150 mm cone grille

Models	Code	V~ 50/60HZ	Speed	Motor (W)	Amps	RPM	Max Airflow		Max Pressure (Pa) Pa	dB(A) @3m	Max °C	KG
							m3/h	l/s


LINEO 150 & LINEO 150 T	17146 & 17187	220–240	Low	40	0.18	1580	385	106.9	206	41.4	60	2.4
			High	58	0.26	2100	550	152.8	264.9	50.5

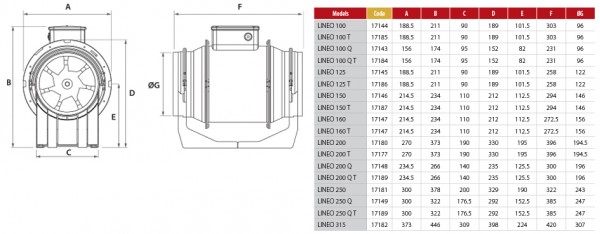

LINEO 2021 diagdims
